Express – 22 LB. Basic – Commercial Grade Soft Mount Extractor

This Express basic model has a 22 lb capacity. Is enough to clean 4 pieces of turnout gear. Note: a set of gear is 4 pieces. NFPA recommends for wash cycles to separate liners from outers.

SKU: CACSM-22-Basic Categories: ,

Description

Express – 22 lb. – Basic Commercial
Turnout Gear Extractor

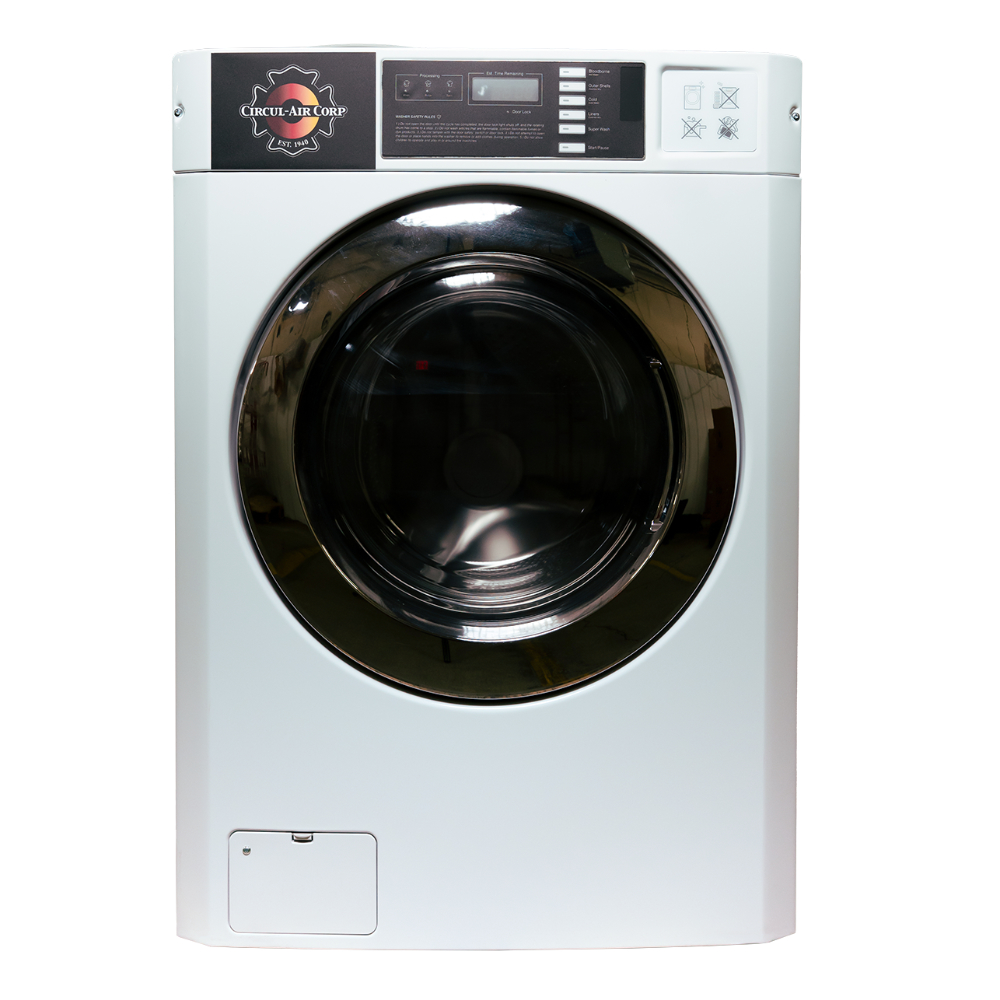

Circul-Air “Express” Series Soft Mount Turnout Gear Extractor

Designed for the fire service, the Express Basic is a commercial, front loading turnout gear extractor pre-programmed with PPE safe cycles. Clean up to 4 pieces of gear with confidence!
A soft mount design, this 120V machine offers simple installation and easy usage for stations with space or resource constraints.

Extractor Features:

  • Wash cycles designed for firefighting turnout gear
  • Pre-programmed with wash cycles that are safe for firefighter turnout gear
  • Specific wash cycles for blood-born / liners / outer shells
  • Commercial quality construction and components
  • Drum Size: 22 lb.
  • 120V power required
  • 2-year warranty

Does not include:

  • Wiring harness
  • Dosing Pump
  • Extended final rinse/spin cycle

Sales Sheets Manuals
Sales Sheets

Single Page Sell Sheet: CACSM-22-Basic_2024-04
Manuals
CACSM User Guide   CACSM-35-Pro Manual

Our CACSM-22-Basic is unique in comparison to all other Circul-Air Extractors as it does not include dosing pump or the pre-wired harness.



CACSM-22-basic CACSM-22-PRO CACSM-35-PRO
Mount Method Soft Mount Soft Mount Soft Mount
Unit Capacity lbs / pieces 22 / 4 22 / 4 35 / 7
Dimensions (w x d x h) 27×29.8×38.7 27×29.8×38.7 29x32x40.8
Unit Color White Platinum Platinum
Unit Weight 191.8 191.8 222
Unit Door Opening 15.5 15.5 16.5
Unit Floor to Door 14 14 15
Electrical Configuration 120v/60/1 120v/60/1 120v/60/1
Electrical Circuit Breaker 10 10 15
Water Supply Inlets 2 @ 3/4 2 @ 3/4 2 @ 3/4
Water Supply Flow 8 gpm 8 gpm 8 gpm
Water Supply PSI 15 – 60 15 – 60 15 – 60
Water Drain Method / Size Pumped Wall / 2” Pumped Wall / 2” Pumped Wall / 2”
Unit Drum Volume 3.6 3.6 5.2
Ship Dimensions 29.7×31.3×44.4 29.7×31.3×44.4 31×33.3×44.3
Ship Weight 211.6 211.6 248
Includes Dosing Pump No Yes Yes
Includes Citro-Squeeze® Yes Yes Yes
Includes Fire Package Programming Yes Yes Yes
Best in class extended spin time No Yes Yes



Additional information

Capacity/Pieces of Gear (separated)

Up to 04 pc capacity

Electrical Requirements

120v 3 prong plug

Drain Method

Wall Drain

Install-Method

Soft-Mount/Freestanding

Product Spec Sheets

CACSM-22-Basic

Product Documents

CACSM-22-Basic

CACSM-22 Manual

CAC Seko1 and CAC Seko2 Pump

Comparison

CACSM-22-basic CACSM-22-PRO CACSM-35-PRO
Mount Method Soft Mount Soft Mount Soft Mount
Unit Capacity lbs / pieces 22 / 4 22 / 4 35 / 7
Dimensions (w x d x h) 27×29.8×38.7 27×29.8×38.7 29x32x40.8
Unit Color White Platinum Platinum
Unit Weight 191.8 191.8 222
Unit Door Opening 15.5 15.5 16.5
Unit Floor to Door 14 14 15
Electrical Configuration 120v/60/1 120v/60/1 120v/60/1
Electrical Circuit Breaker 10 10 15
Water Supply Inlets 2 @ 3/4 2 @ 3/4 2 @ 3/4
Water Supply Flow 8 gpm 8 gpm 8 gpm
Water Supply PSI 15 – 60 15 – 60 15 – 60
Water Drain Method / Size Pumped Wall / 2” Pumped Wall / 2” Pumped Wall / 2”
Unit Drum Volume 3.6 3.6 5.2
Ship Dimensions 29.7×31.3×44.4 29.7×31.3×44.4 31×33.3×44.3
Ship Weight 211.6 211.6 248
Includes Dosing Pump No Yes Yes
Includes Citro-Squeeze® Yes Yes Yes
Includes Fire Package Programming Yes Yes Yes
Best in class extended spin time No Yes Yes
