PPE Express 4 Gear Drying Cabinet – 208 Single Phase

4 Gear Drying Cabinet
Electrical: 208 Single Phase

Product total
Options total
Grand total
SKU: E413 Categories: , ,

Description

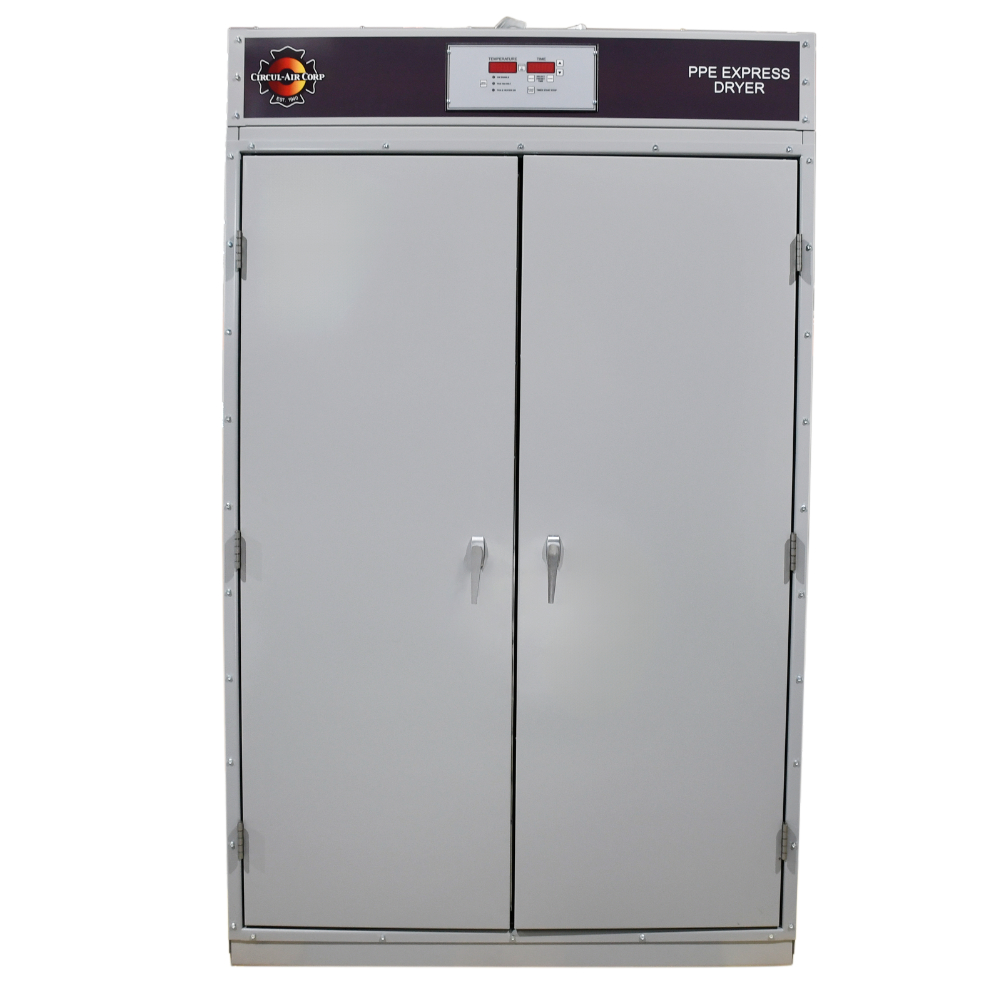

Express 4-Gear Drying Cabinet

With an industry-leading 10-year warranty, we are not only confident that the durability of our Circul-Air cabinet gear dryers will exceed expectations, we stand by it. The Express 4-Gear is the smallest of the double-door units and is perfect for stations that have limited space and budget. The Express 4-Gear packs a punch, offering a small footprint while also drying up to 6 pieces of gear. Including both ambient and heat functions, our 4-gear is the ideal standard level cabinet that is compliant with NFPA 1851:2020.

Specifications:

• Capacity up to 6 pieces of gear
• Dryer Presets:
• Gear 3 hour
• Hose 10 hour
• Meets NFPA 1851 2020 edition
• 600 CFM Air flow
• 6000 Watts of heating @ 240 v
• 12 3/8” Diameter Exhaust Port
• Commercial Grade Construction
• Powder Coated & Galvanized Construction
• Weight: xxx lbs
• CSA / ETL Compliant
• Made in North America
• 10 year warranty

Includes:

• 6 Gear Hangers
• 6 Glove Hangers
• 2 Wire Racks
• 1 boot rack

Dimensions (WxDxH) 47” x 34” x 81.5″

Additional information

Capacity/Pieces of Gear (separated)

Up to 04 pc capacity, Up to 06 pc capacity

Electrical Requirements

208v 1 Phase

Install-Method

Soft-Mount/Freestanding

Product Documents

Download Product Catalog

Appliance Warranty & Manuals

Extractor Warranties & Manuals

Warranty Files Located https://drive.circul-air-corp.com/s/cZTfM4gHikRAg7x

1 E413

2 PPE Express 4 Gear Drying Cabinet - 208 Single Phase

3

4 4 Gear Drying Cabinet Electrical: 208 Single Phase

5

Technical Data

Electrical Specification:

208 V / 1 PH / 60 HZ / 30.1 AMPS / 3 WIRE + G, 35 AMP DEDICATED BREAKER
