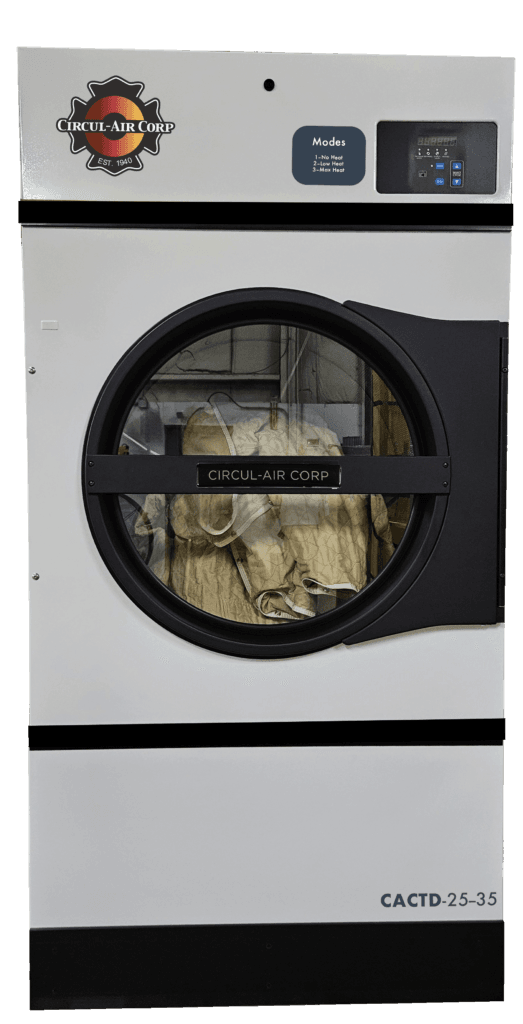

Tunrout Gear Tumble Dryer

TURNOUT GEAR TUMBLE DRYER:

This Tumble Dryer is ideal for centralized drying of multiple stations at one location. This machine operates with the use of both electric and gas, drying more gear in a small footprint. Arriving pre-promgrammed to provide ISP-capacity drying, its pre- programmed cycles within the dryer ensures that your gear is thoroughly dried, reducing the risk of mold, mildew and bacterial growth. Loading and unloading your gear has never been easier. The tumble dryer’s door features a wide 180-degree opening, ensuring convenient access and maneuverability with minimal effort. Circul-Air tumble dryers are full NFPA-1851 2020 edition compliant, which ensures your gear will be dried safely and in a timely fashion.

• Commercial grade construction for long-lasting durability to dry gear for years to come

• Three Pre-Programmed Cycles:

1. No Heat: Ideal for situations where gentle drying is preferred.

2. Low Heat: A moderate, NFPA-compliant heat setting for a balanced drying process.

3. Max Heat: Ideal for non-gear items where temperature settings can be increased.

• Capacity ranges from 6 to 25 pieces of gear

• Optimal for ISPs or stations in dryer climates with high gear needs

• 1-year warranty

Specifications

ModelCACTD25-35CACTD55-65CACTD75-85CACTD115-125
Capacity (lbs./pieces)25/6 to 35/855/13 to 65/1675/15 to 85/18115/21 to 125/25
Door Opening22.7″26.9″27″27″
Door to Floor27.5″26.3″29.2″31.4″
Drum Depth30″35″36″41″
Drum Vol. ft39.617.322.436.1
Electricalv/phase/hz/wire/amp120 / 1 / 50-60 / 1W+N+G / 15120 / 1 / 50-60 / 1W+N+G / 15120 / 1 / 50-60 / 1W+N+G / 15120 / 1 / 50-60 / 1W+N+G / 15
Gas Inlet BSP1/2″1/2″1/2″1/2″
Exhaust6″8″8″10″
Max Airflow500 cfm700 cfm800 cfm1400 cfm
Dimensions27.9×45.5×63.934×53.1×66.738.5x53x77.346.1×67.9×85.7
Shipping Dimensions30x49x67.635.5x57x70.541.5x56x8148×71.5×90
Weight3404007301250
