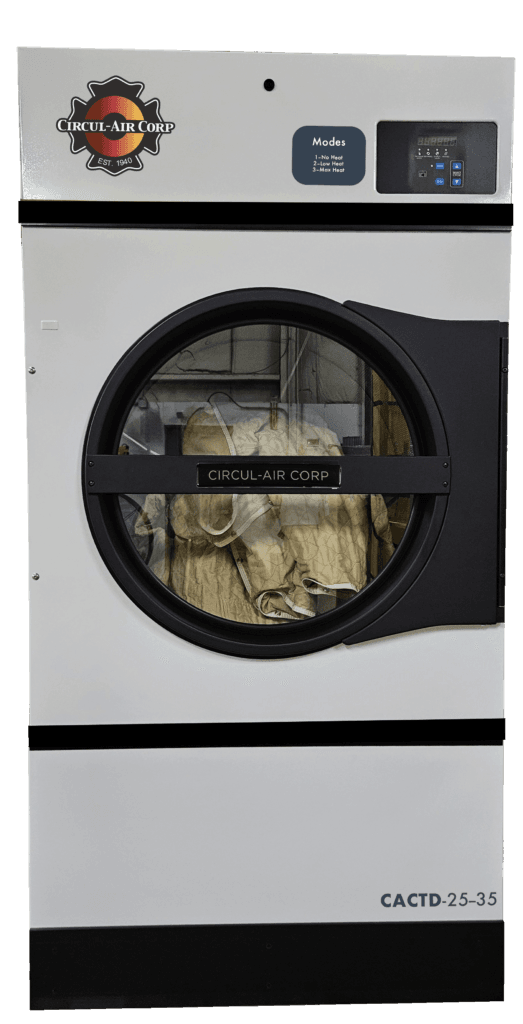

Tunrout Gear Tumble Dryer

TURNOUT GEAR TUMBLE DRYER FEATURES:

  • NFPA 1851:2020 Compliance: Rest easy knowing that Curcul-Air’s Turnout Gear Tumble Dryer meets the latest NFPA 1851 standards.
  • Loading With Ease: Loading and unloading your gear has never been easier. The Tumble Dryer’s door features a wide 180 degree opening, ensuring convenient access. This allows you to maneuver your turnout gear with minimal effort.
  • Pre-Programmed Cycles: Every Turnout Gear Tumble Dryer comes with three pre-programmed cycles that meet NFPA 1851:2020. This ensures your gear is safely dried in order to continue standing up to the demands of the firefighting industry.
    1. No Heat: Ideal for situations where gentle drying is preferred.
    2. Low Heat: A moderate heat setting for a balanced drying process.
    3. Max Compliant Heat: This setting adheres to the highest of compliant standards.
  • Efficiency and Safety Combined: The Circul-Air Turnout Gear Tumble Dryer delivers superior drying performance while emphasizing safety and efficiency. Its pre-programmed cycles within the dryer ensures that your gear is thoroughly dried, reducing the risk of mold, mildew, and bacterial growth.

Invest in the reliability and innovation of Circul-Air’s Dryer line. Experience the peace of mind that comes with knowing your firefighting gear is treated with the care it deserves. Upgrade your gear maintenance routine with a dryer that reflects Circul-Air’s commitment to quality, compliance, and the well-being of firefights.

Specifications

ModelCACTD23CACTD30CACTD36CACTD51CACTD60CACTD75
Capacity (lbs.)233036516075
Capacity (Pieces)689121518
Door Diameter22.6″22.6″22.6″22.6″31.6″31.6″
Door to Floor27″27″27″29″25.2″25.2″
Drum Depth18.7″24″29.4″31.4″30.7″36.9″
Drum Vol. ft37.429.5311.6516.219.423.3
Electrical120v /
1Phase / N 20Amp
120v /
1Phase / N 20Amp
120v /
1Phase / N 20Amp
120v /
1Phase / N 20Amp
120v /
1Phase / N 20Amp
120v /
1Phase / N 20Amp
Gas Inlet BSP1/2″1/2″1/2″1/2″1/2″1/2″
Exhaust8″8″8″8″8″8″
Max Airflow500 cfm500 cfm500 cfm706 cfm706 cfm706 cfm
Dimensions31x34x6731x39x6731x44x6735x49x6738.8×41.5×7838.8×41.5×78
Shipping Dimensions34x37x7337x42x7334x48x7338x53x7642×45.5×8242x51x82
Weight379379412462507573

All Configurations
