PPE Dual Purpose Dryer – 208 Single Phase

Electrical: 208 Single Phase

Product total
Options total
Grand total
SKU: D613 Categories: , ,

Description

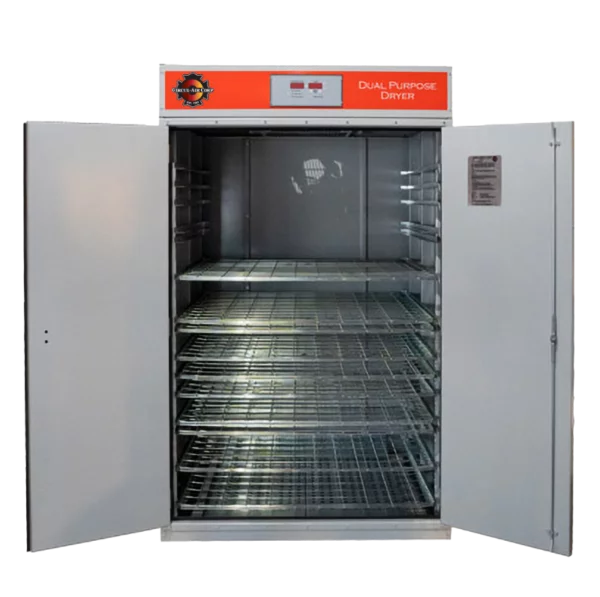

Dual Purpose Drying Cabinet

With an industry-leading 10-year warranty, we are not only confident that the durability of our Circul-Air cabinet gear dryers will exceed expectations, we stand by it. The Dual Purpose Cabinet is ideal for multi-engine stations that want the ability to dry gear and hose. Having the capacity of 8-10 pieces of gear and 500 ft of 5″ hose (seperately), this dryer arrives pre-programmed to be NFPA 1851:2020 compliant.

Specifications:

• Capacity up to 10 pieces of gear or 500’ of 5” hose
• Select From Dryer Presets:
• Gear 3 hour
• Hose 10 hour
• Meets NFPA 1851 2020 edition
• 900 CFM Air flow
• 6000 Watts of heating @ 240v
• 12 3/8” Diameter Exhaust Port
• Commercial Grade Construction
• Powder Coated & Galvanized Construction
• Weight: 1175 lbs
• CSA / ETL Compliant
• Made in North America
• 10 year warranty



Includes:

• 6 gear hangers
• 6 glove hangers
• 10 wire hose shelves

Additional information

Capacity/Pieces of Gear (separated)

Up to 10 pc capacity, Up to 08 pc capacity, Up to 09 pc capacity

Electrical Requirements

208v 1 Phase

Install-Method

Soft-Mount/Freestanding

Product Documents

Download Product Catalog

Appliance Warranty & Manuals

Extractor Warranties & Manuals

Warranty Files Located https://drive.circul-air-corp.com/s/cZTfM4gHikRAg7x

1 D613

2 PPE Dual Purpose Dryer - 208 Single Phase

3

4 Electrical: 208 Single Phase

5

Technical Data

Electrical Specification:

208 V / 1 PH / 60 HZ / 20 AMPS / 3 WIRE + G, 35 AMP DEDICATED BREAKER
