PPE Express 6 Gear Dryer – 240 Single Phase

Electrical: 240 Single Phase

Product total
Options total
Grand total
SKU: E612 Categories: ,

Description

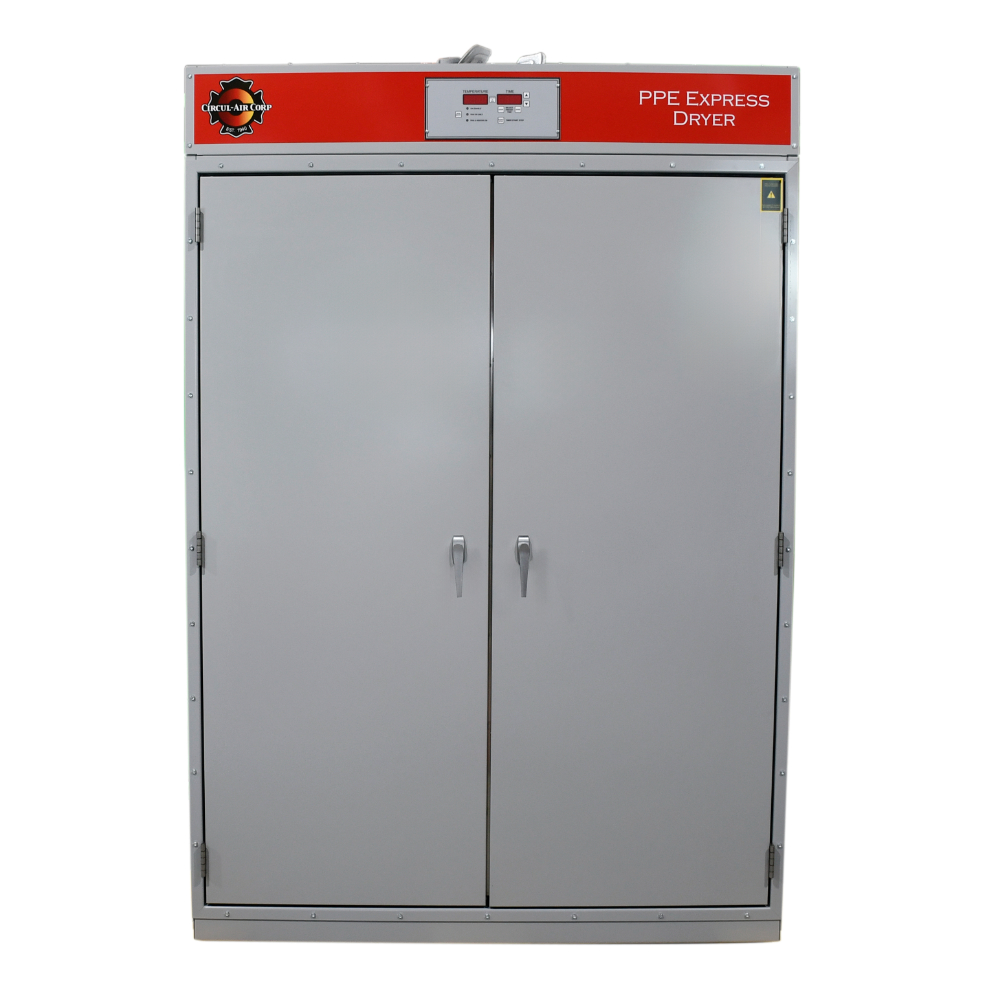

Express 6-Gear Drying Cabinet

With an industry-leading 10-year warranty, we are not only confident that the durability of our Circul-Air cabinet gear dryers will exceed expectations, we stand by it. The Express 6-Gear cabinet have a capacity of 6-8 pieces of gear and include 4 racks for drying hose. Our negative-pressure design allows for gear to be dried thoroughly without the need for intense heat. This dryer arrives pre programmed to be NFPA 1851:2020 compliant.

Specifications:

• Capacity up to 8 pieces of gear
• Dryer Presets:
• Gear 3 hour
• Hose 10 hour
• Meets NFPA 1851 2020 edition
• 900 CFM Air flow
• 6000 Watts of heating @ 240 v
• 12 3/8” Diameter Exhaust Port
• Commercial Grade Construction
• Powder Coated & Galvanized Construction
• Weight: 875 lbs
• CSA / ETL Compliant
• Made in North America
• 10 year warranty

Includes:

• 6 Gear Hangers
• 6 Glove Hangers
• 3 Wire Racks
• 1 boot rack

Dimensions (WxDxH) 55” x 38” x 82”

Additional information

Capacity/Pieces of Gear (separated)

Up to 08 pc capacity, Up to 06 pc capacity, Up to 07 pc capacity

Electrical Requirements

240v 1 Phase

Install-Method

Soft-Mount/Freestanding

Product Documents

Download Product Catalog

Appliance Warranty & Manuals

Extractor Warranties & Manuals

Warranty Files Located https://drive.circul-air-corp.com/s/cZTfM4gHikRAg7x

1 E612

2 PPE Express 6 Gear Dryer - 240 Single Phase

3

4 Electrical: 240 Single Phase

5

Technical Data

Electrical Specification:

240 V / 1 PH / 60 HZ / 30.1 AMPS / 2 WIRE + G, 35 AMP DEDICATED BREAKER
